PVC tank liners provide a protective barrier between stored water and the internal surfaces of storage tanks. They are commonly used in commercial, industrial, and fire water storage applications. However, liners can develop damage after years of operation or exposure to unsuitable conditions.
Punctures, seam defects, abrasion, and material deterioration may compromise their ability to retain water. When damage appears, facility managers often face an important decision. Can the existing PVC tank liner be repaired, or does the entire lining system require replacement?
The answer depends on the type of damage, its location, and the overall condition of the liner. Some localised defects may be suitable for professional repair. Other problems indicate that the material can no longer provide reliable long-term performance.
Replacing an entire liner unnecessarily can increase costs and operational downtime. However, repairing extensively deteriorated material may result in repeated leaks and additional maintenance.
Understanding the difference helps facility managers make informed decisions. This guide explains which PVC liner defects may be repairable, when replacement becomes necessary, and how inspections support reliable outcomes.
What is a PVC Tank Liner?
A PVC tank liner is a flexible membrane installed inside a water storage tank. Its primary purpose is to create a watertight barrier between the stored liquid and the surrounding structure.
PVC liners may be installed in several tank configurations, including sectional and panel water tanks. Their suitability depends on the stored liquid, operating conditions, and liner specification.
Our guide, PVC tank liners explained, explores how these membranes protect commercial and industrial water storage tanks.
How PVC Tank Liners Work
PVC liners form a continuous containment barrier across the internal tank surfaces. Depending on the system, individual membrane sections may be joined using specialised welding methods.
The liner must accommodate the tank’s geometry and expected operating conditions.
Important design considerations include:
-
Liner material properties.
-
Membrane thickness.
-
Seam construction.
-
Tank dimensions.
-
Substrate condition.
-
Water chemistry.
-
Operating temperature.
-
Penetrations and connection details.
Correct installation is essential for long-term performance. Poorly prepared surfaces or unsuitable installation methods can increase the likelihood of damage.
Where PVC Tank Liners are Used
PVC lining systems may be suitable for various water storage applications.
Common examples include:
-
Commercial water storage tanks.
-
Industrial water tanks.
-
Fire protection water tanks.
-
Sectional panel tanks.
-
Selected process water applications.
However, not every PVC liner is suitable for every stored liquid. Potable water applications require appropriate material certification and compliance with relevant requirements.
Professionally specified PVC tank liners Sydney solutions can support reliable water containment in commercial and industrial storage tanks.
Common Types of PVC Tank Liner Damage
PVC tank liners can experience several forms of deterioration. Some defects remain localised, while others affect larger sections of the membrane.
Identifying the damage mechanism is essential before selecting a repair method.
1. Punctures and Small Holes
Punctures can occur when sharp objects contact the liner surface.
Potential causes include:
-
Sharp substrate irregularities.
-
Exposed fasteners.
-
Dropped maintenance equipment.
-
Debris beneath the membrane.
-
Mechanical impact.
-
Inadequate protective underlay.
A small puncture may create a localised leakage pathway. However, the visible opening does not always reveal the full extent of damage.
The surrounding material should also be assessed.
2. Seam Separation
PVC tank liners often contain welded seams connecting membrane sections. These seams must maintain watertightness throughout normal operation.
Seam defects may develop because of:
-
Inadequate initial welding.
-
Contaminated joining surfaces.
-
Incorrect welding conditions.
-
Excessive mechanical stress.
-
Material deterioration.
-
Movement around unsupported areas.
A damaged seam can allow water to migrate beneath the liner. Repair suitability depends on the condition of the adjoining membrane.
3. Abrasion Damage
Abrasion occurs when repeated contact gradually wears the liner surface. Potential sources include rough substrates, unsupported folds, or contact with internal components.
Over time, abrasion may reduce the membrane’s effective thickness. This can increase vulnerability to punctures and tearing.
The underlying cause must be corrected before a permanent repair is attempted.
4. Tears and Mechanical Damage
Tears may develop when a liner experiences excessive tension or mechanical loading.
Possible causes include:
-
Movement around tank penetrations.
-
Inadequate allowance for membrane movement.
-
Sharp structural edges.
-
Equipment contact.
-
Installation defects.
-
Localised stress concentrations.
Some small tears may be repairable. However, extensive tearing can indicate broader installation or structural problems.
5. Material Hardening and Brittleness
Flexible PVC materials can change over time. Ageing, temperature exposure, and chemical conditions may influence material properties.
Some liners may gradually lose flexibility. Brittle material can become more vulnerable to cracking or damage during handling.
Localised repairs may be unreliable when the surrounding membrane has deteriorated extensively.
6. Damage Around Tank Penetrations
Tank liners must accommodate pipe connections, outlets, and other penetrations. These areas often require specialised sealing details.
Potential problems include:
-
Failed seals.
-
Incorrectly installed fittings.
-
Membrane movement.
-
Damaged connection components.
-
Localised stress.
-
Deteriorated sealing materials.
Penetration defects may require more complex repairs than ordinary surface punctures. The connection design must remain suitable after corrective work.

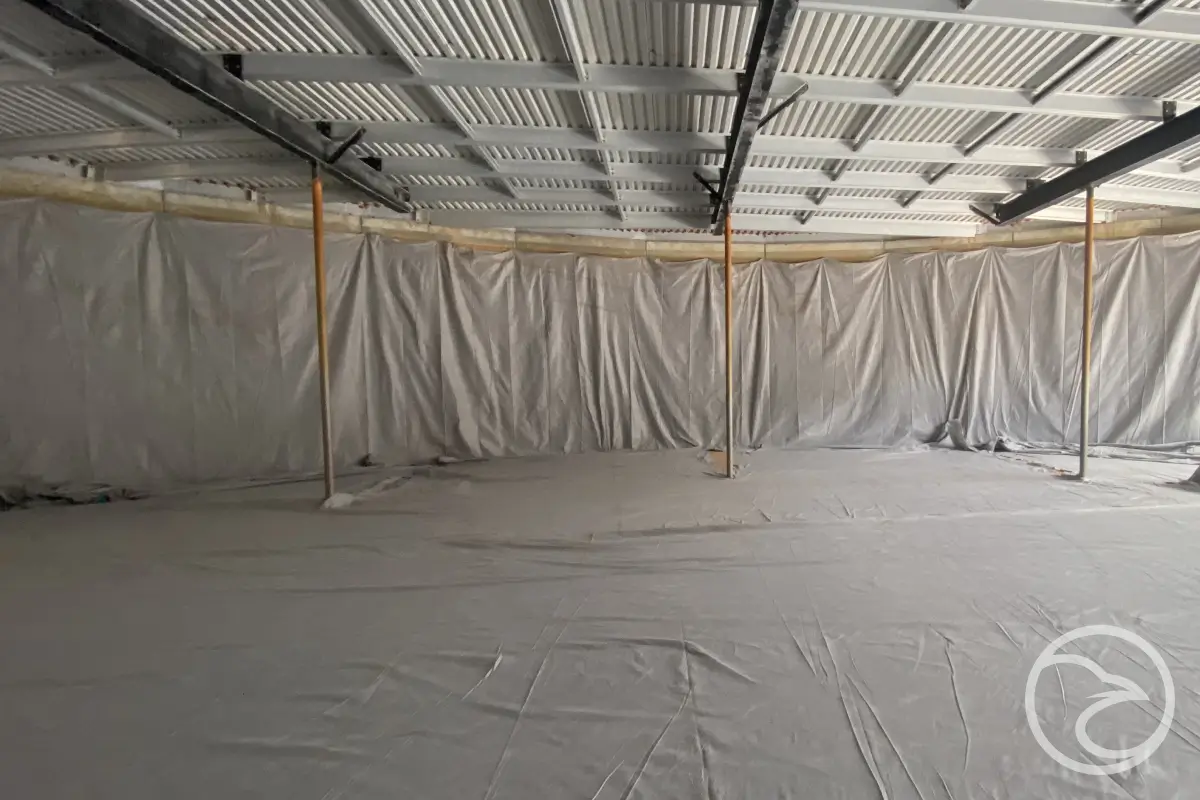

Can PVC Tank Liners be Repaired?
Yes, some PVC tank liners can be repaired without replacing the entire membrane. However, repairability depends on the condition of both the damaged area and the surrounding material.
The defect must be accessible, and the proposed repair must suit the liner specification.
Small Localised Punctures
Small punctures may be suitable for professional patch repairs. The repair process may involve preparing the surface and applying a compatible membrane patch.
Appropriate welding methods can create a watertight connection between the patch and existing liner. However, the material must remain suitable for welding.
A patch cannot reliably restore severely degraded membrane material.
Limited Seam Defects
Some seam defects can be repaired when the surrounding material remains structurally sound. The repair may involve localised seam preparation and additional welding.
However, extensive seam separation may indicate a wider installation problem. In these cases, repairing one visible defect may not provide a lasting solution.
Isolated Mechanical Damage
Localised tears or abrasion damage may be repairable. The repair method depends on defect size, location, and membrane condition.
Damaged material may require reinforcement or replacement of a limited section. Any underlying sharp edges or mechanical stress must also be addressed.
Repairable Damage vs Widespread Deterioration
A localised defect is different from general material failure. A liner with one puncture may remain suitable for continued service.
However, a liner showing widespread cracking, brittleness, or seam deterioration may require replacement. The distinction should be established through a professional condition assessment.

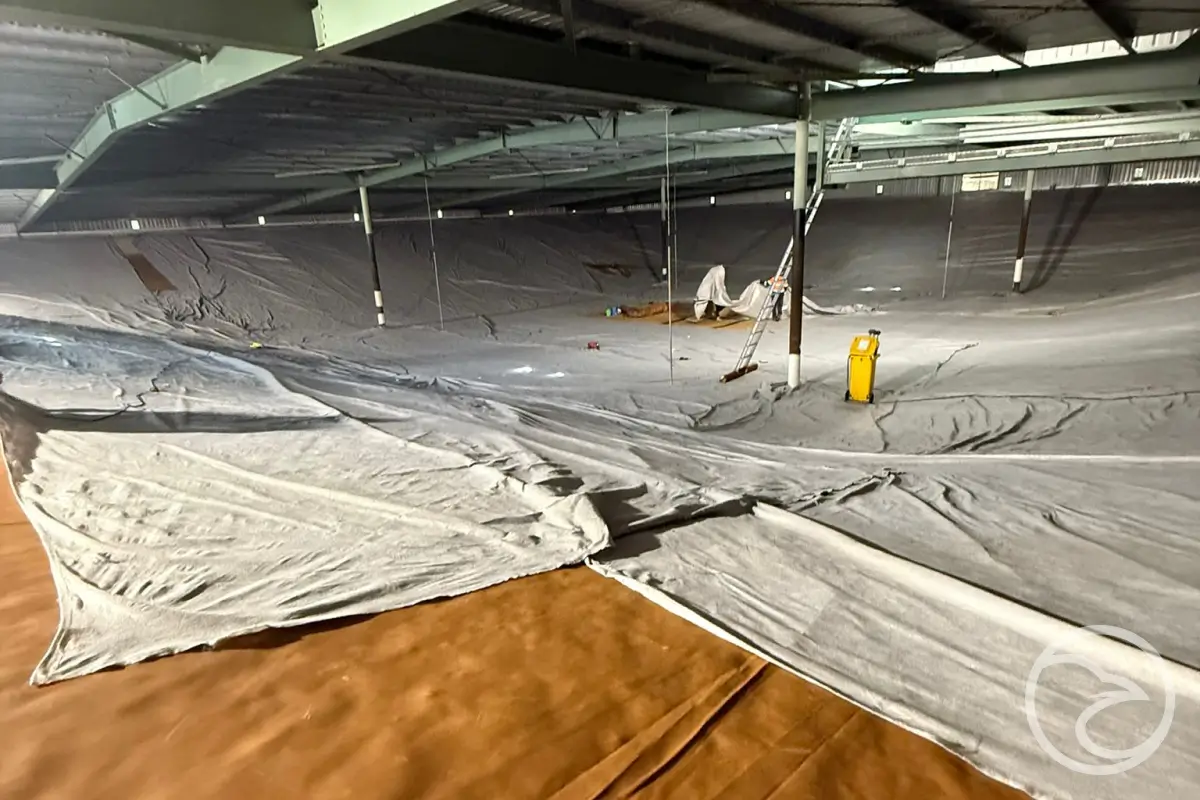

When is Full PVC Tank Liner Replacement Necessary?
Full replacement may be appropriate when repairs cannot restore reliable containment performance. This decision should consider the liner’s condition, operating requirements, and expected remaining service life.
Widespread Material Deterioration
A membrane showing extensive brittleness, cracking, or surface degradation may no longer be suitable for localised repairs. Even if one defect is repaired, additional failures may develop elsewhere.
The remaining material must provide a reliable foundation for any repair.
Multiple Recurring Leaks
Repeated leaks across different areas can indicate broader deterioration. A single failed patch does not automatically require full replacement.
However, recurring defects should prompt investigation into the overall liner condition. Potential causes include material ageing, installation problems, or unsuitable operating conditions.
Extensive Seam Failure
Widespread seam separation may compromise the continuity of the containment barrier. Repairing numerous seams can become complex and disruptive.
Replacement may be more appropriate when the original joining system is unreliable.
Chemical Incompatibility
PVC liners must be compatible with the stored liquid. Exposure to unsuitable substances can affect flexibility, strength, or other material properties.
A chemically damaged membrane may not provide a reliable repair surface. Replacement with an appropriately specified material may be necessary.
Significant Substrate Problems
The condition of the tank beneath the liner matters. Sharp surfaces, structural movement, corrosion, or damaged panels may repeatedly affect the membrane.
Replacing or repairing the liner without correcting these conditions can lead to further damage. The tank structure should be assessed before major lining work.
Different water tank repair methods may be required when liner damage occurs alongside corrosion or structural deterioration.
Changes in Operating Requirements
A liner originally selected for one application may not suit changed operating conditions. Examples include different water chemistry, temperatures, or storage requirements.
Replacement may be necessary when the existing specification no longer meets operational needs.
Understanding when to refurbish or replace a water tank helps facility managers evaluate wider structural and lining problems.
How are PVC Tank Liner Repairs Performed?
Professional PVC liner repairs require appropriate preparation, compatible materials, and suitable joining methods. The exact procedure depends on the liner manufacturer and damage type.
Step 1: Inspect the Damaged Area
The first step is identifying the defect and assessing its surroundings. Inspectors should determine whether damage is isolated or part of a wider problem.
Relevant observations may include:
-
Defect dimensions.
-
Membrane flexibility.
-
Seam condition.
-
Surface contamination.
-
Abrasion patterns.
-
Substrate defects.
-
Penetration condition.
The findings help determine whether repair is practical.
Step 2: Identify the Underlying Cause
A repair should address more than the visible opening. For example, a puncture caused by an exposed fastener may recur unless the fastener is corrected.
Similarly, a seam failure caused by excessive tension may require changes to the membrane arrangement. Identifying the cause reduces the likelihood of repeated damage.
Step 3: Prepare the Repair Surface
PVC welding generally requires clean, suitable surfaces. Dirt, moisture, residues, and deteriorated material can interfere with joining quality.
Preparation procedures should follow the liner manufacturer’s recommendations. Not every damaged membrane remains suitable for welding.
Step 4: Apply a Compatible Repair
Depending on the system, a repair may involve:
-
Compatible membrane patches.
-
Localised seam welding.
-
Replacement of damaged membrane sections.
-
Approved penetration repairs.
-
Suitable reinforcement details.
Hot-air welding is commonly used for compatible thermoplastic membrane systems. However, welding conditions must suit the specific material and thickness.
Unapproved adhesives or generic sealants should not be assumed suitable.
Step 5: Inspect and Test the Repair
Completed repairs should undergo appropriate quality checks. The testing method depends on the membrane system and repair configuration.
Possible methods include visual examination and suitable seam integrity testing. The objective is to confirm that the repaired area meets relevant performance requirements.
Step 6: Document the Work
Repair records support future maintenance planning.
Useful information includes:
-
Repair location.
-
Defect type.
-
Materials used.
-
Repair method.
-
Inspection findings.
-
Testing results.
-
Recommended follow-up actions.
Documentation can help identify recurring damage patterns.
Can PVC Tank Liner Repairs be Completed Without Draining the Tank?
Some tank inspections can be completed while water remains in storage. However, inspection without draining is different from performing a permanent liner repair underwater.
Conventional PVC membrane welding generally requires controlled access and suitable surface conditions. A submerged membrane cannot ordinarily be repaired using standard hot-air welding procedures.
Underwater Inspection Options
Remotely operated vehicles may help inspect accessible liner surfaces without complete drainage. These inspections can identify visible defects, displaced material, and certain seam problems.
However, water clarity and tank geometry can limit visibility. Underwater inspection may not reveal hidden defects beneath folds or behind fittings.
When Draining may be Necessary
Draining may be required to access damaged areas and prepare them for repair. The necessary water level depends on the repair location and tank configuration.
Some projects may allow partial draining. Others may require complete dewatering.
Operational requirements must be considered before taking a tank out of service.
Special Considerations for Fire Water Tanks
Fire protection water storage systems require careful maintenance planning. Reducing stored water availability can affect system readiness.
Repairs may require coordination with facility managers and relevant fire protection specialists. Applicable impairment management and compliance procedures should be followed.
PVC Tank Liner Repair vs Replacement: Key Differences
Repair and replacement offer different advantages depending on liner condition. The most appropriate option is not necessarily the least expensive initial intervention.
Long-term reliability should remain a primary consideration.
| Factor | PVC liner repair | Full PVC liner replacement |
|---|---|---|
| Suitable damage | Isolated defects | Widespread deterioration |
| Existing material | Must remain serviceable | Removed or replaced |
| Work scope | Usually localised | Entire lining system |
| Downtime | May be shorter | Often more extensive |
| Initial cost | May be lower | Usually higher |
| Long-term performance | Depends on remaining liner condition | Depends on new system design and installation |
| Recurring leaks | Possible if root causes remain | Reduced only when underlying problems are corrected |
Repair Costs
Repair costs depend on the defect location, accessibility, and required preparation. A small patch may involve limited material use.
However, access restrictions, draining, cleaning, and testing can significantly influence project costs.
Replacement Costs
Replacement generally involves removing or preparing the existing lining system and installing a new membrane. Additional work may be required to correct substrate defects.
Project costs depend on tank size, geometry, access, and operational requirements.
Downtime Considerations
Some facilities cannot easily remove water storage tanks from service. This is particularly relevant for essential industrial and fire protection applications.
Maintenance planning should consider temporary storage arrangements and operational impacts.
Expected Remaining Service Life
A successful repair does not reset the age of the existing liner. The surrounding membrane continues to experience normal ageing and operating conditions.
Replacement provides a new lining system, but its performance still depends on appropriate specification and installation.
Why do Some PVC Tank Liner Repairs Fail?
Not every repair provides lasting performance. Recurring failures may indicate unsuitable materials, poor preparation, or unresolved operating conditions.
Incompatible Repair Materials
PVC formulations and membrane specifications can vary. A repair material should be compatible with the existing liner.
Using unsuitable materials can compromise the joint.
Poor Surface Preparation
Contamination can interfere with membrane welding. Residues, moisture, and degraded surfaces may reduce repair quality.
Appropriate preparation is essential.
Incorrect Welding Conditions
Thermoplastic welding requires suitable temperature, pressure, and application techniques. Incorrect settings can produce weak or damaged seams.
Qualified installation practices help reduce these risks.
Continued Mechanical Stress
A repaired area may fail again if excessive stress remains. Examples include sharp substrate edges, unsupported folds, and movement around fittings.
The underlying cause must be corrected.
Ageing Surrounding Material
A new patch may be sound while the surrounding liner continues deteriorating. This can create new failure points adjacent to the repair.
Material condition should therefore be assessed before repair.
How to Inspect a PVC Tank Liner for Hidden Damage
Some liner defects are visible during routine inspections. Others remain difficult to detect until leakage or water loss occurs.
A structured inspection helps identify potential problems.
Examine Welded Seams
Seams are important components of the containment barrier. Inspectors may look for visible separation, irregularities, or damaged joining areas.
However, visual inspection alone cannot confirm every seam defect.
Check Corners and Folds
Tank corners and membrane folds may experience localised stress. These areas should be assessed for abrasion, tension, or unusual deformation.
Not every fold indicates a defect. The significance depends on the liner design and installation.
Inspect Penetrations
Outlets, pipe connections, and other penetrations require suitable sealing arrangements. Visible movement or damaged connection details may indicate potential leakage pathways.
Assess Membrane Flexibility
Changes in flexibility may indicate ageing or unsuitable exposure conditions. However, material assessment should consider temperature and membrane specification.
Handling or testing should not create additional damage.
Investigate Unexplained Water Loss
Unexpected water level reductions may indicate leakage. However, normal consumption, overflow arrangements, and connected equipment should also be considered.
Water level monitoring can support investigation.
Review Previous Repairs
Earlier repair locations deserve attention during subsequent inspections. Recurring damage may indicate unresolved causes.
Maintenance records help identify these patterns.
How to Extend the Service Life of PVC Tank Liners
Preventive maintenance can help reduce avoidable damage. The appropriate programme depends on tank design, liner specification, and operating conditions.
Maintain Suitable Water Chemistry
Water chemistry can influence material performance. Facilities should confirm that stored liquids remain compatible with the liner specification.
Unexpected chemical exposure should be investigated.
Prevent Mechanical Damage
Sharp objects and unsuitable maintenance equipment can damage flexible membranes. Personnel should use appropriate access procedures and protective measures.
Tools should not be placed directly against vulnerable liner surfaces.
Maintain Tank Structural Integrity
The liner depends on suitable support from the surrounding tank structure. Damaged panels, exposed fasteners, and structural movement may affect membrane performance.
Tank inspections should consider both the liner and its supporting structure.
Monitor Water Levels
Unexpected water loss may indicate a developing problem. Monitoring can help identify changes requiring investigation.
However, water level data should be interpreted alongside operational records.
Inspect High-Risk Areas
Inspection programmes should include seams, corners, penetrations, and previously repaired locations. These areas may require closer attention because of their geometry or operating conditions.
Address Defects Early
Small defects can develop into larger problems when underlying causes remain unresolved. Prompt professional assessment helps determine suitable corrective action.
However, unnecessary repair work should be avoided when the membrane remains serviceable.
Conclusion
PVC tank liners do not always require complete replacement when damage occurs. Small punctures, isolated tears, and certain seam defects may be suitable for professional repair. However, repairability depends on the surrounding material and the underlying cause.
Widespread deterioration, recurring leaks, chemical incompatibility, and extensive seam failures may justify full replacement. A reliable decision requires more than examining the visible defect.
The tank structure, liner specification, operating conditions, and previous repair history should also be considered. Professional inspections help determine whether localised repairs can restore dependable containment performance.
Where the existing membrane remains serviceable, targeted repairs may reduce unnecessary replacement work.
